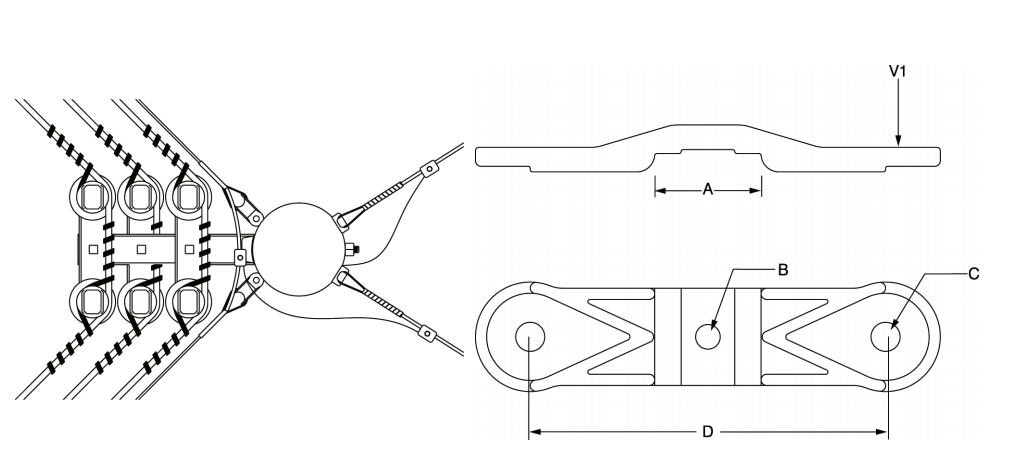

Double Insulator Plate

Description:

The Double Insulator Plate is an accessory that allows two HPI polyethylene insulators to be used at each phase position on all angle brackets.

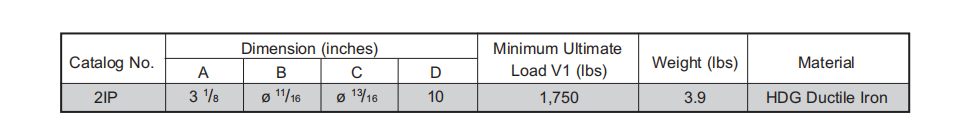

The Double Insulator Plate is cast ductile iron that is hot dip galvanized after fabrication.

Benefits:

• Provides an increased phase conductor bend radius.

• Divides the mechanical load of large angles between two insulator pins.

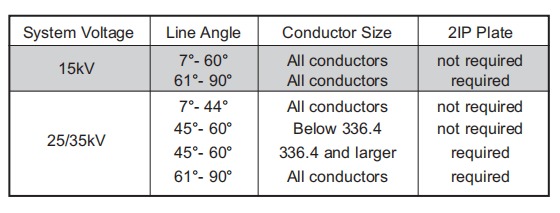

Application:

Each plate is furnished with the required hardware for mounting on all angle brackets.
