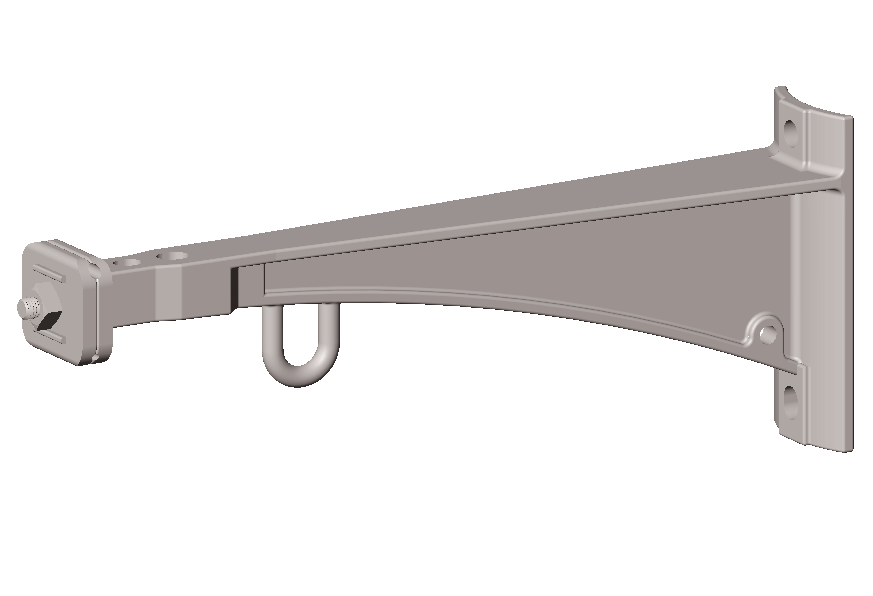

Tangent Brackets

Description:

The tangent brackets designed specifically for use with Spacer Cable Systems.

All tangent brackets are supplied with a messenger clamp.

Benefits:

• Designed to work in conjunction with Hendrix Roll-By installation equipment and allow continuous, uninterrupted pulling past tangent structures.

• Tangent brackets are designed fore “back to back” double circuit construction

• Tangent brackets will accept a standard short shank insulator pin (up to 3/4" shank diameter) and insulator for single phase spacer cable angle construction as well as “armless” tree wire construction

Application:

The brackets are designed to support the spacer cable messenger wire.

They are used on tangent poles and line angles up to 6°. Pole mounting is accomplished using either 5/8” or 3/4” thru-bolts (not included).
