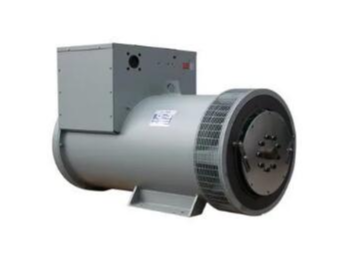

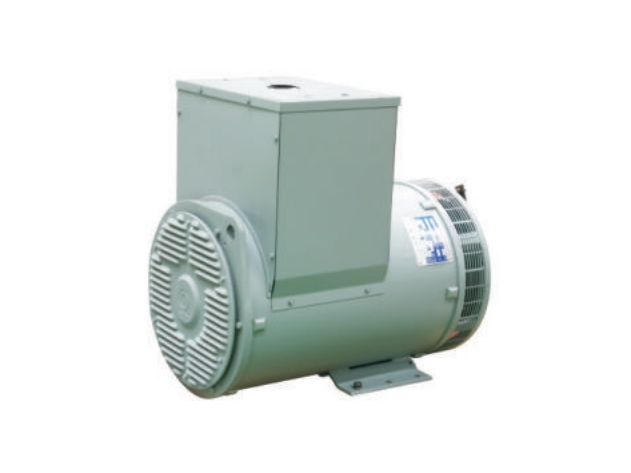

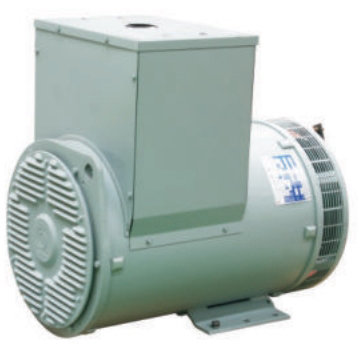

AC CENERATOR

可选用马拉松、斯坦福、英格、西门子等世界著名电气公司设计的新型无刷发电机，其设计独特，结构先进，所以体积小，重量轻，性能优良，运行可靠，使用方便。

New type brushless generators of unique design, advanced structure,small volume, light, excellent performance,reliable operation and easy use and designed by world famous electrical companies such as Marathon, Stamford, Engga and Siemens can be selected.

技术参数

• 稳态电压调整率：1%

• 瞬态电压调整率：（-15%，+20%）

• 电压调整范围：>10%

• 线电压波形正弦性畸变率: <5%

• 配用APM2000并联模块，可稳定地并联运行，无功分配度差<10%

• 额定电压：400V

• 功率因数：0.8（滞后）

TECHNICAL PARAMETERS

Steady voltage regulation:1%

Transient voltage regulation:（-15%，+20%）

Voltage regulation range: >10%

Line voltage waveform sinusoidal distortion factor:<5%

Equipped with APM2000 synchronous module, stable synchronous operation with reactive power distribution difference<10% is possible.

Rated voltage: 400V

Frequency: 50HZ

Power factor: 0.8 (lagging)

设计特点

• 发电机为全防护结机，内部通风散热合理，通风效率高，温升低。

• 无刷励磁，配用固态电压调节器，具有低速保护过励关断，电磁干扰抑止等功能。

• 整体凸极转子，阴尼绕组与铁心成为一体，磁场绕组用热固性环氧填充，具有较高的机械和电气强度。

• 绝缘等级为H级。

• 发电机采用双面防尘，特殊高性能润滑脂，电机专用滚珠轴承，噪音小，使用寿命长。

DESIGN FEATURES

The generator is of fully protected structure with rational internal ventilation and heat dispersion,high ventilation efficiency and low temperature rise.

It is of brushless excitation, and is equipped with steady voltage regulator for low speed protection, overexcitation shutoff and electromagnetic interference suppression.

It has integral salient pole rotor. Damping winding and iron core are in one. Field winding is filled with thermosetting epoxy. Tt is of high mechanical and electrical strength.

Insulation level is H.

The generator is double-sidely dustproof. Special hith performance lubricating grease is used. Ball bearing of low noise and long service life for motor is used.
